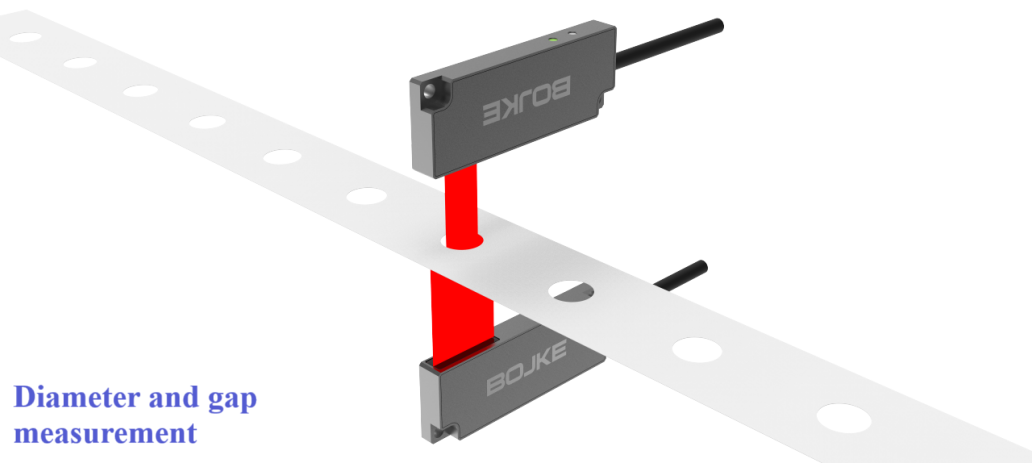

Sensing Range 2-10mm Optical Through-Beam Edge Sensor With Light Axis Alignment

Product Categories

Guangdong Boyijingke Sensing Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Sensing Range 210mm Optical ThroughBeam Edge Sensor With Light Axis Alignment
Brand: BOJKE
Price: 488 USD

Place of Origin : Guangdong, China

Brand Name : BOJKE

MOQ : 1

Price : $488

Model Number : BDT-10

Certification : CE

Payment Terms : T/T

Supply Ability : 150k

Delivery Time : 5~8 work days

Packaging Details : kraft paper box with carton box;

Series : Through-Beam Edge Sensor

Description : Edge width and gap measurement

Theory : Light Axis Alignment

Output : NPN and Analog output

Response Time : 500μs

Power supply : DC 5V

Contact Now

Optical Through-Beam Edge Sensor With Light Axis Alignment Sensing Range 2~10mm

Product Description

Product Name	Edge gap diameter measure ment
Material	Aluminum alloy
Function	Light axis alignment function
Package	Poly bag+kraft box

1.Suitable for edge measurement and width/gap measurement

2.Light reflective function for easy installation

3.Compact design for easy installation

4.Send the data of sheet edge positions to a controller to eliminate meandering.

Model:		BDT-10
Measurement range and size:		24mm
Detection distance(from workpiece):		0～40mm
Light source:	wavelength	Red laser·650nm
	Max output power	7mw
Light spot size:		3.5x25mm
Linear accuracy		±200μm
Repeat accuracy		±30μm
Response time		500μs
Temperature drift		±0.02%F.S./℃
RGB Indicator light		Slow flashing green light (2Hz): normal operating state
		Long green light on: program restart loading in progress
		Light off: The light path is completely blocked or in an abnormal state
Analog output		current:4～20mA (Input impedance of sampling terminal≤250Ω)
Supply power		DC 12～24V ±10%
Consumption current		less than 100mA(at DC 24V)
Connection type		M8 4 pin connector
protection degree		IP67
Operation temperature/humidity		-10 ～ + 50℃/35～85%RH(No condensation, no freezing)
Storage temperature/humidity		-20～+60℃/35～85%RH(No condensation, no freezing)
Ambient Illuminance		Sunlight:< 10000lux. incandescent lamp:< 3000lux
Vibration resistance		10～55Hz double amplitude 1.5mm
		X,Y,Z direcitions each 2 hourse
Shock resistance		about 50G(500 m/s2)
		X,Y,Z directions 3 times
Protection circuit		Reverse connection protection,overcurrent protection
Weight		75g
Material		Housing material:Aluminium alloy lens:glass
