High Sensitivity High Frequency Ultrasonic Sensor Precise Detection Identification

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : BOJKE

MOQ : 1

Model Number : CSBT-60N/CSBT-60P

Certification : CE

Price : $205

Payment Terms : T/T

Supply Ability : 150k

Delivery Time : 5~8 work days

Packaging Details : kraft paper box with carton box;

Product name : Ultrasonic Sensors

Description : Small in Size Highly Universal in Detection

Usage : Industrial Inspection and Identification

Output : NPN、PNP

Frequency : 200KHz

Voltage - Supply : 12~24V DC

Detection Distance : 20~120mm

Material : Nickel Plated

Contact Now

Ultrasonic Sensor Precise Detection Identification High-Frequency Sensitivity

Product Description
Product Name Ultrasonic Sensor
Material Nickel Plated
Function Industrial Inspection and Identification
Theory ultrasonic sensing

1. Product performance description

2. The ultrasonic wave propagation speed is stable, and the stability is consistent under different measurement ranges. Low power consumption.

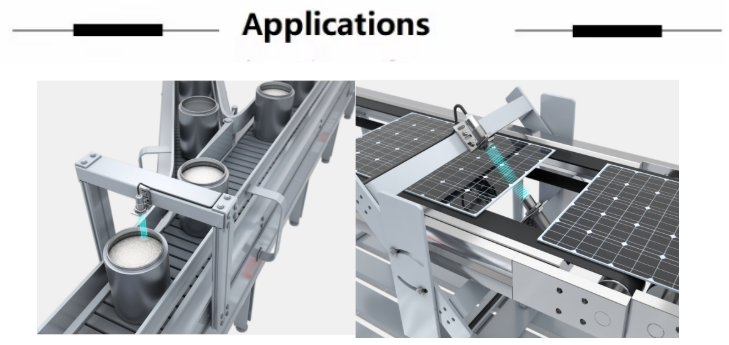

3. Precise detection enables easy identification of paper, film, silicon wafers, adhesive tape, solar cells, and PCB boards. It can be applied in multiple fields such as smart factories, smart cities, and smart homes.
High Sensitivity High Frequency Ultrasonic Sensor Precise Detection Identification
Model No. CSBT-06N CSBT-06P
Sensing Range 20 - 120 mm,Best range:60 mm
screen refresh 1ms
Application application for detecting none, single or multiple sheets of overlapping material
Pulse <100ms
Sensor Frequency 200KHz
Respond Delay <500ms
Calibration Method built-in calibration mode
Output Mode NPN , three independent outputs PNP , three independent outputs
Working Voltage DC 18~30V ±10%
No-load Current ≤25mA
Working Current ≤100mA
Voltage Drop <3V
Power Consumption ≤550mW
Impedance ≥60 kΩ
Ambient Temperature operation temperature:-25℃~70℃；storage temperature:-25℃~80℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit reverse polarity protection/surge protection/short circuit protection
Housing Material nickel-plated copper
Indicator LED yellow: no target object (air); LED green: single sheet detected ; LED red: double sheets detected
Net Weight 180g
Protection Level IP67
Connection Type cable-type (6 core, 2 meter standard cable)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
